Large inclination belt conveyor

Corrugated edge retaining belt conveyor is a kind of equipment that provides continuous transportation for general bulk materials. The product has many advantages, such as easy overall design, low power, less land occupation, small civil construction volume, and can greatly reduce the overall design cost of the project.

1. Large inclination angle conveying bulk materials can greatly save the equipment floor area, and completely solve the problem of conveying angle that can not be reached by ordinary and patterned belt conveyors;

2. Mechanized belt conveyor transports materials with low overall investment cost, saving about 20% - 30% of the investment cost

3. This model overcomes the phenomena of chain jamming, floating chain and chain breaking of buried scraper conveyor and the phenomena of slipping and bucket dropping of bucket elevator;

4. The conveying capacity is large, the lifting height is higher, and the vertical lifting height of single machine can reach 100m;

The corrugated edge retaining belt conveyor produced by our company is at the absolute leading level in China and has a number of patents. At present, it has produced more than 5000 sets for various industries, with reliable and safe operation and won the trust and praise of users.

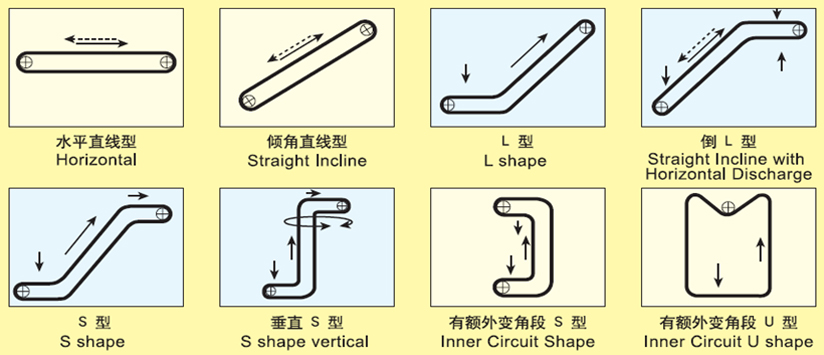

Layout sketch

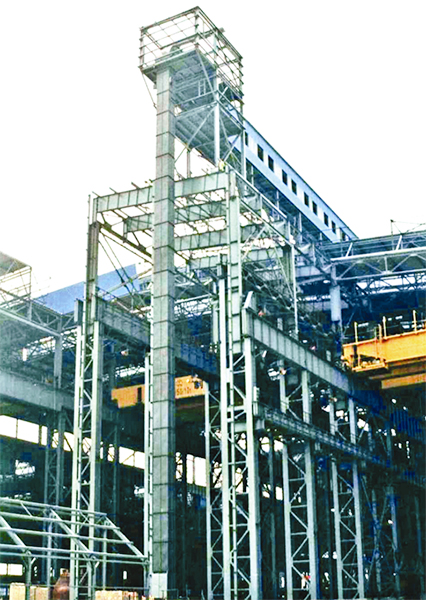

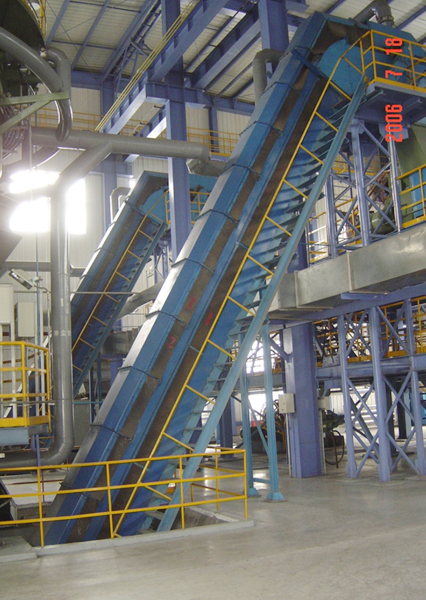

Vertical lifting corrugated edge retaining belt conveyor, with a bandwidth of 1200 and a lifting height of 58m.	Corrugated edge retaining belt conveyor with truss fully closed structure	Corridor structure corrugated side retaining belt conveyor (Hegang Xuangang)
